Great for: Truck, Trailer, Jeep, Boat, Bus, Lorry, Van, Caravan, etc.

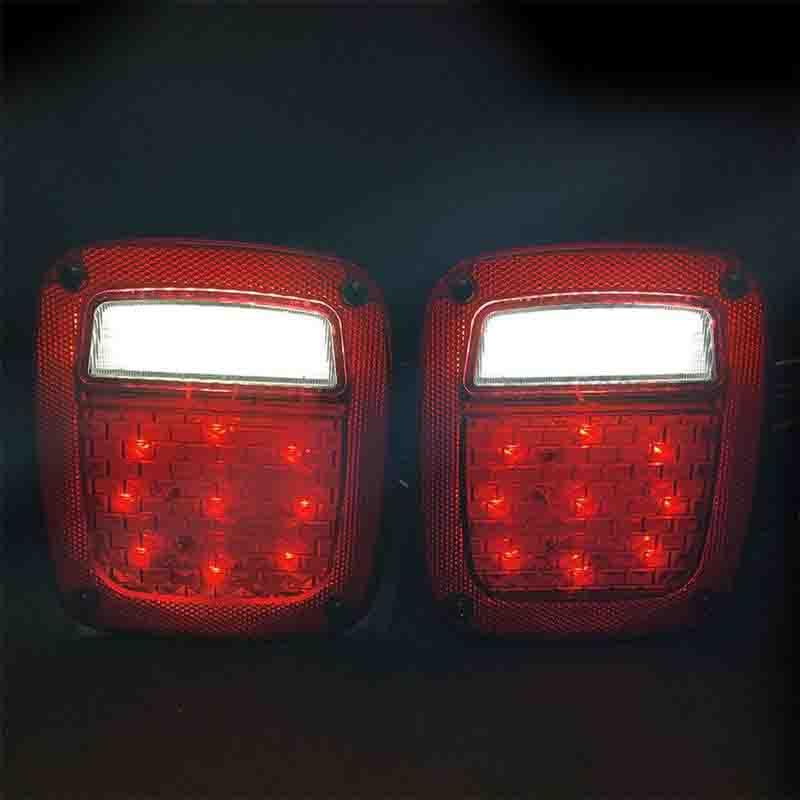

Total 38 LEDs function as Stop Turn Tail lights, Reverse lights & License Plate illumination:

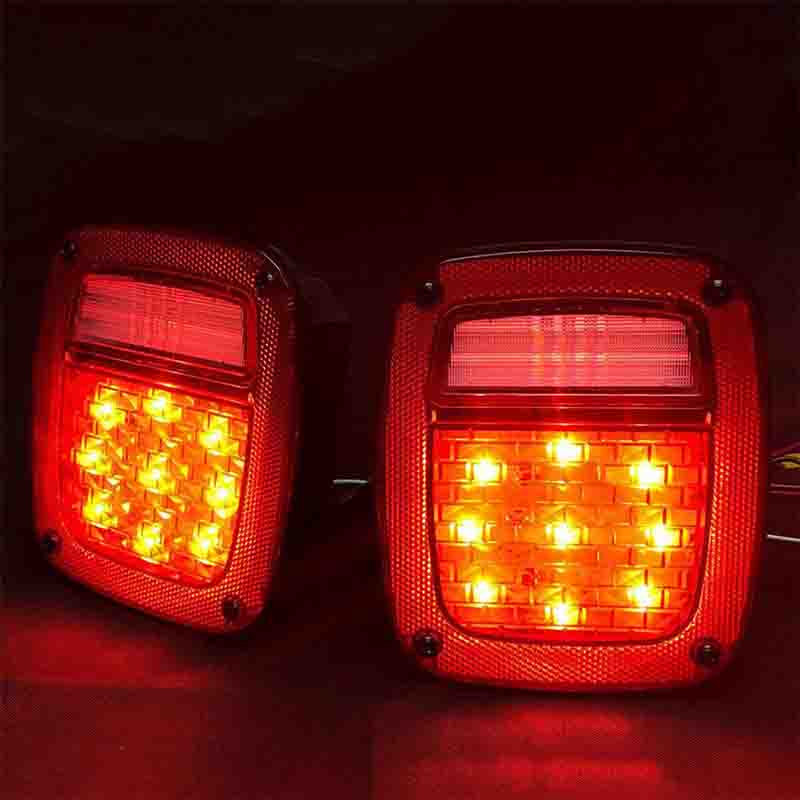

- 16 Red LEDs for stop/turn/tail functions
- 18 White LEDs for backup function
- 4 White LEDs for license plates

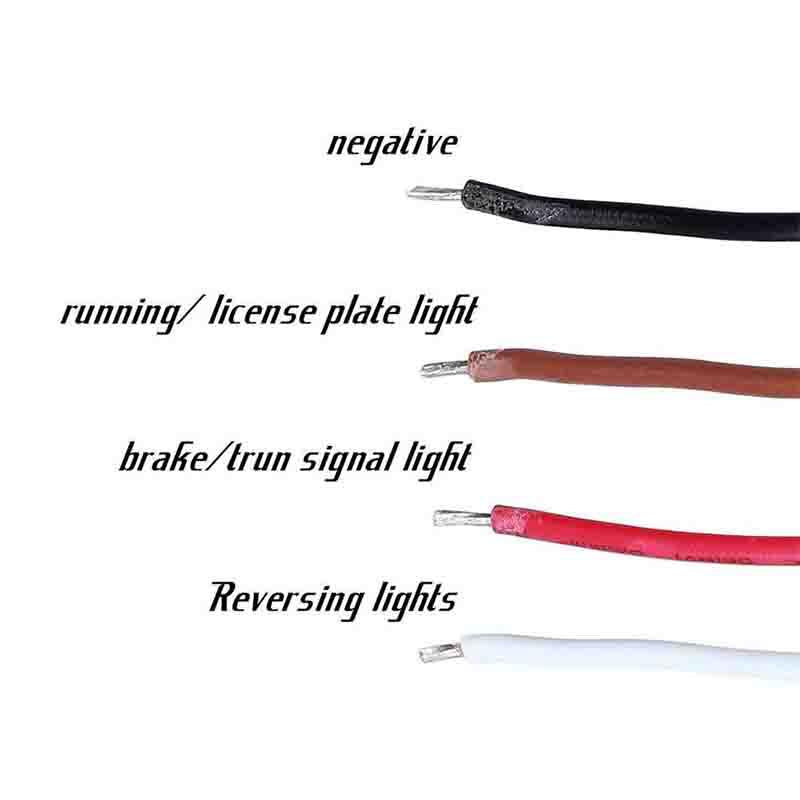

4 Color Wire connection:
- 1. White wire - Reversing light
- 2. Black wire - Negative
- 3. Brown wire - Running/ License plate light
- 4. Red wire - Break / Turn Signal light
- Easy Installation (fit into the original bulb sockets)
- Light Color: Red, White
- Light Mode: Running light, Brake light, Reverse backup light

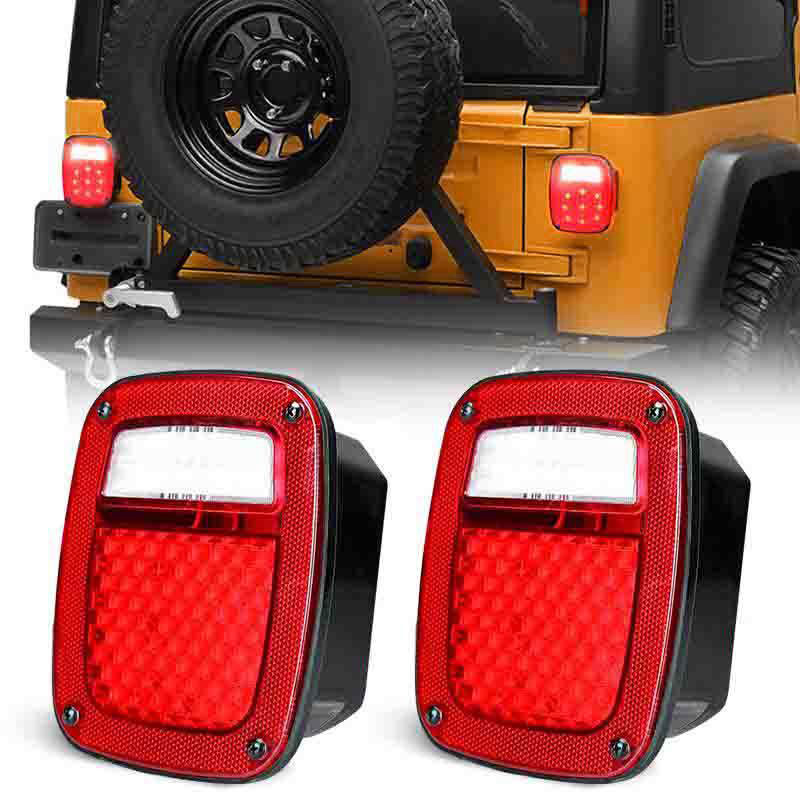

- Fits almost all Jeeps (CJ/YJ/TJ)
- Bright LED for better visibility and safe driving
- Quick response illumination
- High impact polycarbonate housing for durability
- Light opening on bottom of both housings
- Long life LED 100,000 hours long life
- No installation instructions are included.
- Some Jeeps will require resistors.
- Sold as pair (1-Left and 1 Right). Both sides come with the bottom accent lights

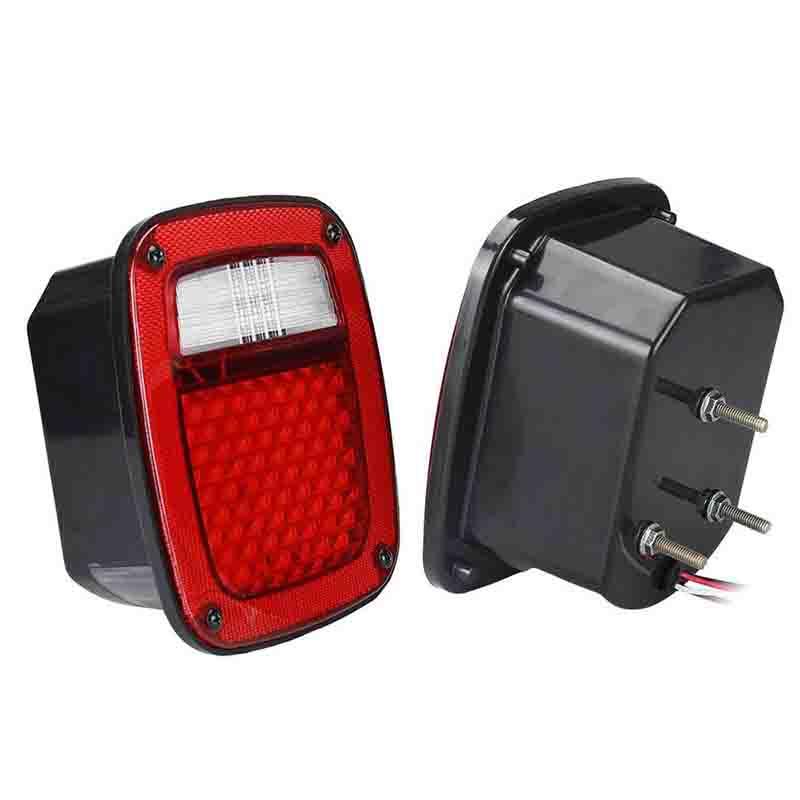

These LED tail lights bolt directly in place of the factory OE lamps. Cutting of the OE lamp pigtail is required and must be spliced onto the new assembly with included hardware. Each light has 16 LED parking, turn and brake bulbs so you will be seen, and 18 LED back up light bulbs so you can see back up in the darkest places. DOT & SAE compliant and meets federal regulations FMVSS108.

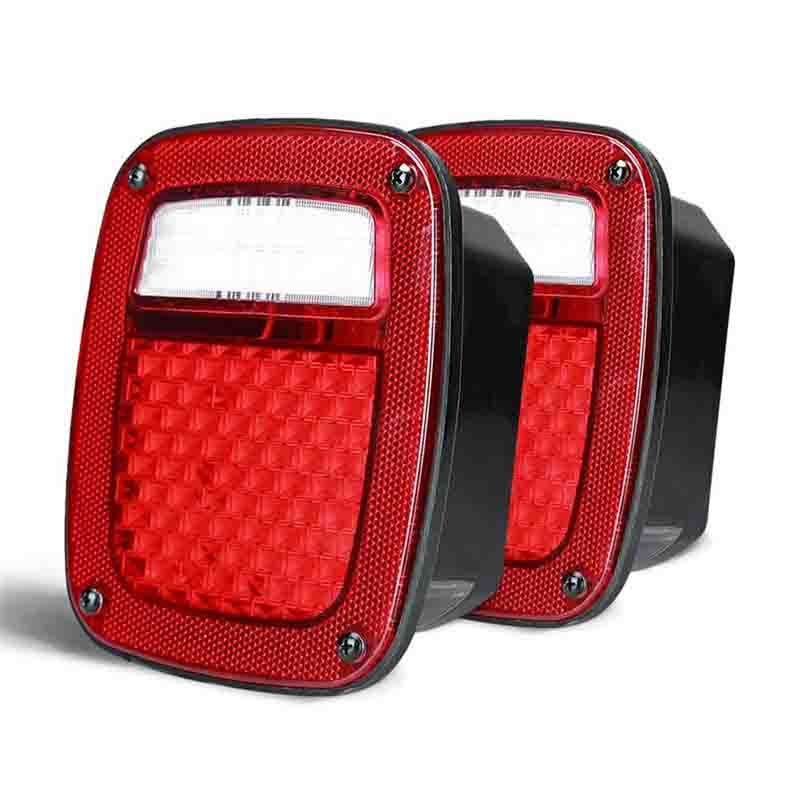

- 2 x LEDs Stop Tail Back up Light (Driver Side & Passenger Sides)
